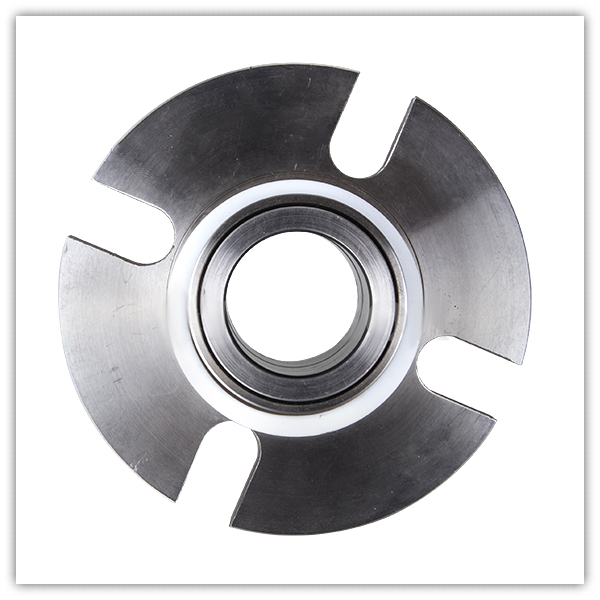

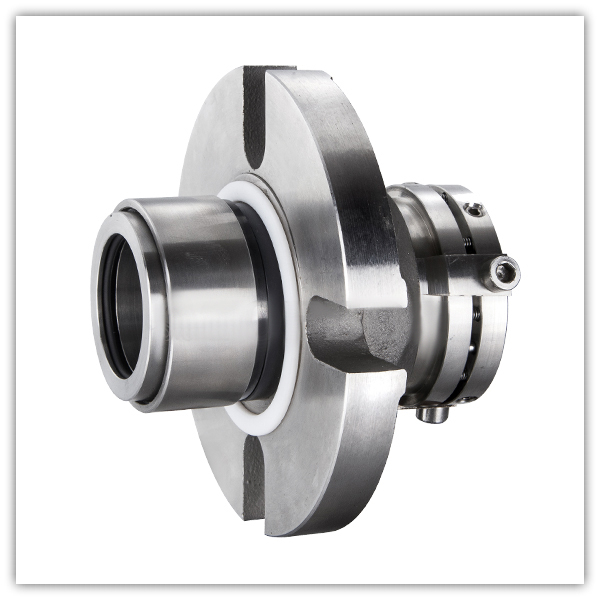

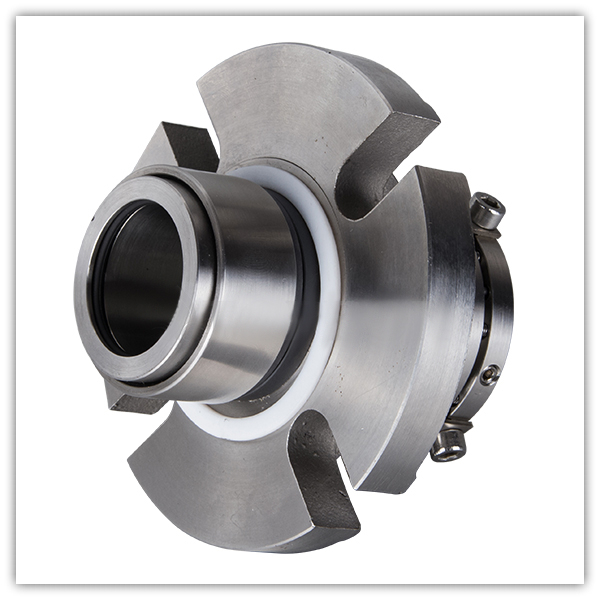

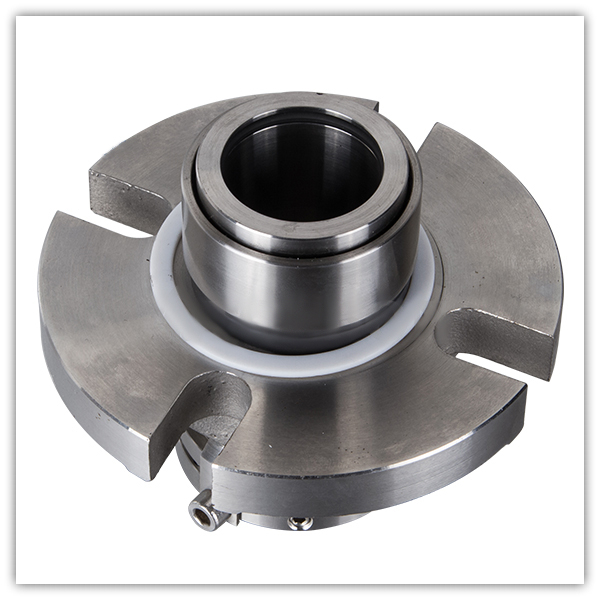

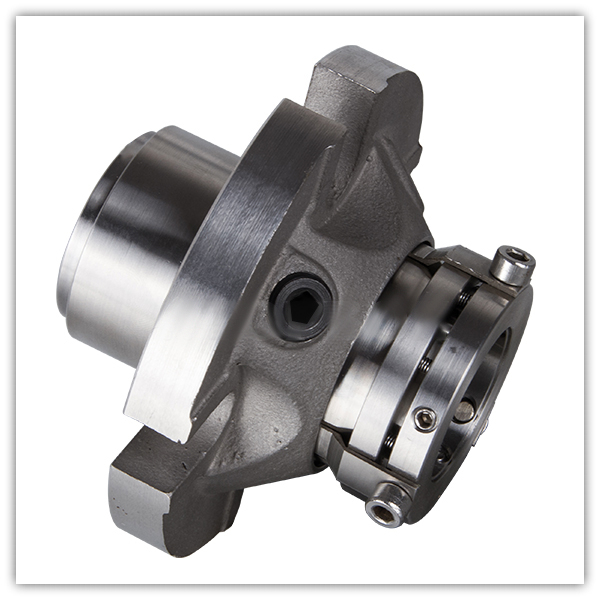

ZLSEALS è il produttore e fornitore cinese di tenute meccaniche ZL GU 0. Con un team di ricerca e sviluppo esperto in questo campo, possiamo fornire ai clienti nazionali ed esteri i prodotti più convenienti.
| d(mm) | D5 | D7 | D8 | L3 | D4 | W | L1 | L2 | ||
| min | massimo | min | massimo | |||||||
| 24 | 104.8 | 54 | 49.2 | 13.2 | 40 | 46 | 67 | 90.5 | 32.5 | 52.4 |
| 25 | 104.8 | 54 | 49.2 | 13.2 | 41 | 49 | 67 | 90.5 | 32.5 | 52.4 |
| 28 | 108 | 572 | 52.4 | 13.2 | 44 | 52.3 | 70.3 | 93.6 | 32.5 | 52.4 |
| 30 | 111 | 60.4 | 55.6 | 13.2 | 46 | 55.5 | 73.5 | 96.8 | 32.5 | 52.4 |
| 32 | 111 | 60.4 | 55.6 | 13.2 | 48 | 55.5 | 73.5 | 96.8 | 32.5 | 52.4 |
| 33 | 111 | 60.4 | 55.6 | 13.2 | 49 | 55.5 | 73.5 | 96.8 | 32.5 | 52.4 |
| 35 | 111 | 63.5 | 58.8 | 13.2 | 51 | 57.5 | 76.6 | 96.8 | 32.5 | 54 |
| 38 | 127 | 71.5 | 65 | 16.4 | 57.2 | 60.3 | 85.7 | 114.3 | 33.3 | 54 |
| 40 | 127 | 71.5 | 65 | 16.4 | 58 | 60.4 | 85.7 | 114.3 | 33.3 | 54 |
| 43 | 127 | 71.5 | 65 | 16.4 | 61 | 63.5 | 85.7 | 114.3 | 33.3 | 54 |
| 45 | 139.7 | 81 | 71.4 | 16.4 | 63 | 69.9 | 95.3 | 127 | 33.3 | 54 |
| 48 | 1397 | 81 | 71.4 | 16.4 | 66.7 | 73 | 953 | 127 | 33.3 | 54 |
| 50 | 139.7 | 81 | 71.4 | 16.4 | 68 | 73 | 95.3 | 127 | 33.3 | 54 |
| 53 | 152.4 | 90.5 | 77.8 | 16.4 | 71 | 76 | 104.8 | 139.7 | 35 | 54 |
| 55 | 152.4 | 90.5 | 77.8 | 16.4 | 74 | 79.4 | 104.8 | 139.7 | 35 | 54 |
| 58 | 165.1 | 96.8 | 84.1 | 16.4 | 76.2 | 82.5 | 114.3 | 149.2 | 35 | 54 |
| 60 | 165.1 | 96.8 | 84.1 | 16.4 | 79.4 | 85.7 | 114.3 | 149.2 | 35 | 60.3 |
| 63 | 177.8 | 109.5 | 96.8 | 19.6 | 85.8 | 92.1 | 127 | 160.3 | 38.1 | 60.3 |
| 65 | 177.8 | 109.5 | 96.8 | 19.6 | 88.9 | 95.3 | 127 | 160.3 | 38.1 | 60.3 |
| 68 | 177.8 | 109.5 | 96.8 | 19.6 | 92.1 | 98.4 | 127 | 160.3 | 38.1 | 60.3 |
| 70 | 177.8 | 109.5 | 96.8 | 19.6 | 92.1 | 98.4 | 127 | 160.3 | 38.1 | 60.3 |
| 75 | 190.5 | 125.4 | 108 | 19.6 | 98.5 | 108 | 142.9 | 173 | 38.1 | 60.3 |
| 80 | 190.5 | 125.4 | 108 | 19.6 | 101.6 | 111.1 | 142.9 | 173 | 38.1 | 60.3 |
| 85 | 203.2 | 135 | 117.5 | 19.6 | 108 | 117.5 | 155.6 | 182.5 | 38.1 | 60.3 |
| 90 | 215.9 | 150.8 | 127 | 19.6 | 114.3 | 127 | 171.5 | 195.2 | 38.1 | 60.3 |
| 95 | 215.9 | 150.8 | 127 | 19.6 | 117.5 | 1302 | 171.5 | 195.2 | 38.1 | 60.3 |
| 100 | 228.6 | 168.3 | 136.5 | 19.6 | 123.9 | 139.7 | 189 | 208 | 38.1 | 60.3 |
| 105 | 228.6 | 168.3 | 136.5 | 19.6 | 130.1 | 149.2 | 189 | 208 | 38.1 | 60.3 |
| 110 | 241.3 | 177.8 | 146.2 | 19.6 | 136.5 | 158.8 | 198.4 | 220.6 | 38.1 | 60.3 |
| 115 | 254 | 186.6 | 155.8 | 19.6 | 142.9 | 168.3 | 211.1 | 230.2 | 38.1 | 60.3 |
| 120 | 254 | 186.6 | 155.8 | 19.6 | 142.9 | 168.3 | 211.1 | 230.2 | 38.1 | 60.3 |
| 125 | 254 | 186.6 | 155.8 | 19.6 | 149.2 | 168.3 | 211.1 | 230.2 | 38.1 | 60.3 |
| d(pollici) | D5 | D7 | D8 | L3 | D4 | W | L1 | L2 | ||
| min | massimo | min | massimo | |||||||
| 1.000 | 4.125 | 2.125 | 1.937 | 0.591 | 1.625 | 1.937 | 2.687 | 3.562 | 1.281 | 2.062 |
| 1.125 | 4.250 | 2.250 | 2.063 | 0.591 | 1.750 | 2.062 | 2.812 | 3.617 | 1.281 | 2.062 |
| 1.250 | 4.375 | 2.375 | 2.187 | 0.591 | 1.875 | 2.187 | 2.937 | 3.812 | 1.281 | 2.062 |
| 1.375 | 4.375 | 2.500 | 2.312 | 0.591 | 2.000 | 2.250 | 3.062 | 3.812 | 1.281 | 2.062 |
| 1.500 | 5.000 | 2.812 | 2.562 | 0.644 | 2.250 | 2.375 | 3.375 | 4.437 | 1.312 | 2.125 |
| 1.625 | 5.000 | 2.812 | 2.562 | 0.644 | 2.375 | 2.500 | 3.375 | 4.437 | 1.312 | 2.125 |
| 1.750 | 5.500 | 3.187 | 2.812 | 0.644 | 2.500 | 2.750 | 3.750 | 4.937 | 1.312 | 2.125 |
| 1.875 | 5.500 | 3.187 | 2.812 | 0.644 | 2.625 | 2.875 | 3.750 | 4.937 | 1.312 | 2.125 |
| 2.000 | 6.000 | 3.562 | 3.063 | 0.644 | 2.750 | 3.000 | 4.125 | 5.437 | 1.380 | 2.125 |
| 2.000-AC | 5.250 | 3.450 | 3.035 | 0.644 | 2.750 | 3.000 | 4.000 | 4.750 | 1.380 | 2.125 |
| 2.125 | 6.000 | 3.562 | 3.063 | 0.644 | 2.875 | 3.125 | 4.125 | 5.437 | 1.380 | 2.125 |
| 2.250 | 6.500 | 3.812 | 3.312 | 0.644 | 3.000 | 3.250 | 4.500 | 5.812 | 1.380 | 2.125 |
| 2.375 | 6.500 | 3.812 | 3.312 | 0.644 | 3.125 | 3.375 | 4.500 | 5.812 | 1.380 | 2.125 |
| 2.500 | 7.000 | 4.312 | 3.812 | 0.769 | 3.375 | 3.625 | 5.000 | 6.312 | 1.500 | 2.375 |
| 2.625 | 7.000 | 4.312 | 3.812 | 0.769 | 3.500 | 3.750 | 5.000 | 6.312 | 1.500 | 2.375 |
| 2.750 | 7.000 | 4.312 | 3.812 | 0.769 | 3.625 | 3.875 | 5.000 | 6.312 | 1.500 | 2.375 |
| 2.875 | 7.500 | 4.937 | 4.250 | 0.769 | 3.750 | 4.125 | 5.625 | 6.812 | 1.500 | 2.375 |
| 3.000 | 7.500 | 4.937 | 4.250 | 0.769 | 3.875 | 4.250 | 5.625 | 6.812 | 1.500 | 2.375 |
| 3.125 | 7.500 | 4.937 | 4.250 | 0.769 | 4.000 | 4.375 | 5.625 | 6.812 | 1.500 | 2.375 |
| 3.250 | 8.000 | 5.312 | 4.625 | 0.769 | 4.125 | 4.500 | 6.125 | 7.187 | 1.500 | 2.375 |
| 3.375 | 8.000 | 5.312 | 4.625 | 0.769 | 4.250 | 4.625 | 6.125 | 7.187 | 1.500 | 2.375 |
| 3.500 | 8.000 | 5.312 | 4.625 | 0.769 | 4.375 | 4.750 | 6.125 | 7.187 | 1.500 | 2.375 |
| 3.625 | 8.500 | 5.937 | 5.000 | 0.769 | 4.500 | 5.000 | 6.750 | 7.687 | 1.500 | 2.375 |
| 3.750 | 8.500 | 5.937 | 5.000 | 0.769 | 4.625 | 5.125 | 6.750 | 7.687 | 1.500 | 2.375 |
| 3.875 | 8.500 | 5.937 | 5.000 | 0.769 | 4.750 | 5.250 | 6.750 | 7.687 | 1.500 | 2.375 |
| 4.000 | 9.000 | 6.625 | 5.375 | 0.769 | 4.875 | 5.500 | 7.437 | 8.187 | 1.500 | 2.375 |
| 4.125 | 9.000 | 6.625 | 5.375 | 0.769 | 5.125 | 5.875 | 7.437 | 8.187 | 1.500 | 2.375 |
| 4.250 | 9.000 | 6.625 | 5.375 | 0.769 | 5.125 | 5.875 | 7.437 | 8.187 | 1.500 | 2.375 |
| 4.375 | 9.500 | 7.000 | 5.750 | 0.769 | 5.375 | 6.250 | 7.812 | 8.687 | 1.500 | 2.375 |
| 4.500 | 9.500 | 7.000 | 5.750 | 0.769 | 5.375 | 6.250 | 7.812 | 8.687 | 1.500 | 2.375 |
| 4.625 | 10.000 | 7.345 | 6.125 | 0.769 | 5.625 | 6.625 | 8.312 | 9.062 | 1.500 | 2.375 |
| 4.750 | 10.000 | 7.345 | 6.125 | 0.769 | 5.625 | 6.625 | 8.312 | 9.062 | 1.500 | 2.375 |
| 4.875 | 10.000 | 7.34S | 6.125 | 0.769 | 5.875 | 6.625 | 8.312 | 9.062 | 1.500 | 2.375 |
| 5.000 | 10.000 | 7.345 | 6.125 | 0.769 | 5.875 | 6.625 | 8.312 | 9.062 | 1.500 | 2.375 |
